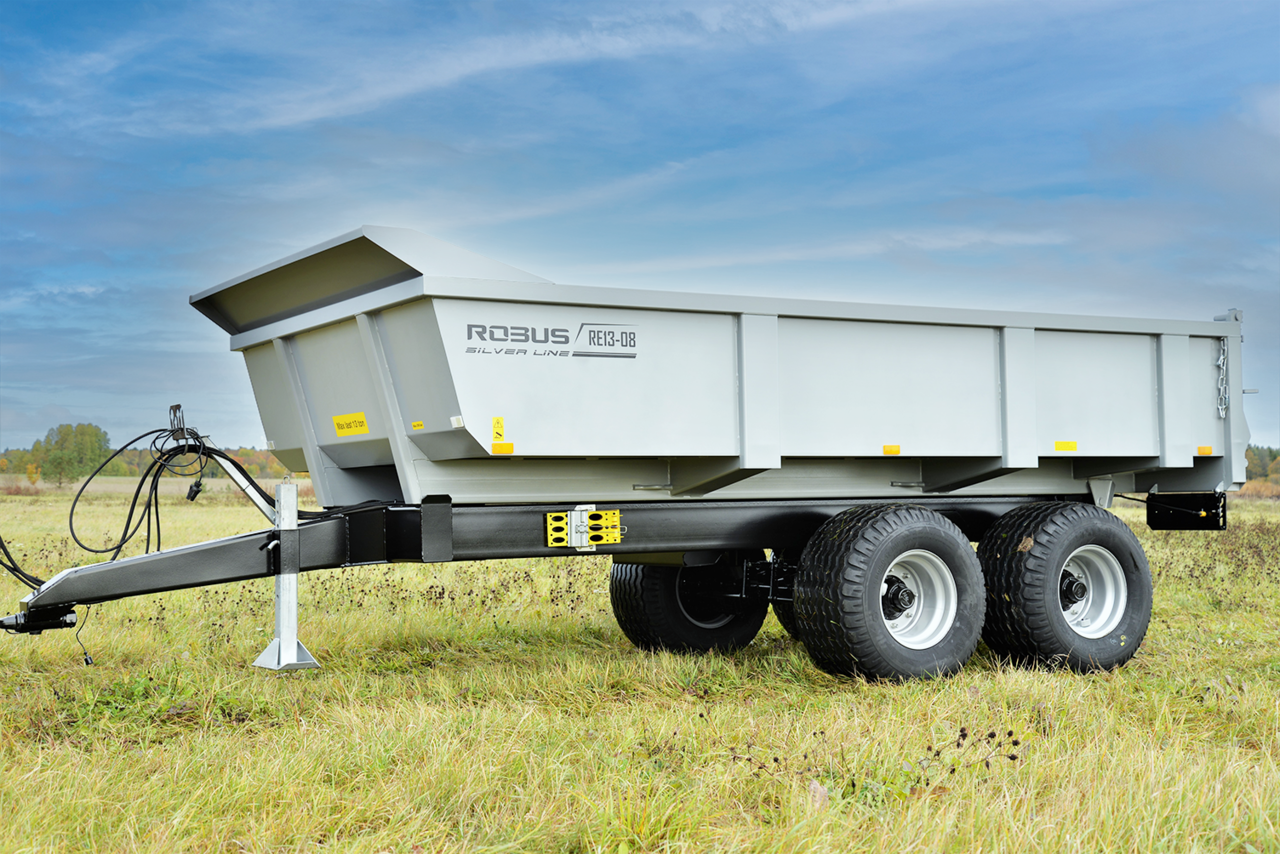

Photos are illustrative. For a trailer with detailed accessories list, please send price request.
This trailer is also suitable for transporting excavators due to the wide box bottom.
This small excavator trailer has a very good maneuverability. It is designed for working on narrow streets, small construction sites etc.
This small excavator trailer has a very good maneuverability. It is designed for working on narrow streets, small construction sites etc.
| Model | RE13-08-SB |
| Length(mm)(With HSD01) | 6375 |
| Width(mm) | 2550 |
| Height(mm) | 2149 |
| Internal measurements of a platform(mm) | 4670x2380x700 |
| Capacitance(m3), ()-with volume backdoor | 7,8 |
| Capacitance with extensions (m3), ()-with volume backdoor | 15,6 |
| Base | 4029+1100 |
| Empty weight(kg) | 3140 |
| Max load capacity(kg) | 13360 |
| Total weight(kg) | 16500 |
| Hitch load(kg) | 2650 |
| Axel sum | 2 |
| Permissible axel load(kg) | 6925 |
| Hub/axel | 80x80, 8bolts |
| Suspension | Spring bogie |
| Brake type | 350x90(359E); 0, 2 or 4 brakes |
| Speed limit(km/h) | 40 |
| Hydraulic circuit working pressure of a brake(bar) | 160 |
| Working pressure of hydraulic circuit(bar) | 180-200 |
| Oil volume for tipping(L) | |
| Standard wheels | 520/50-17 |
| Tilt angle | 52 |
| Thickness of box’s bottom sheet(mm) | 6 |
| Thickness of box’s side sheet(mm) | 5 |
| Optional wheels | 500/50-17 550/45-22,5 |
This small excavator trailer has a very good maneuverability. It is designed for working on narrow streets, small construction sites etc.
