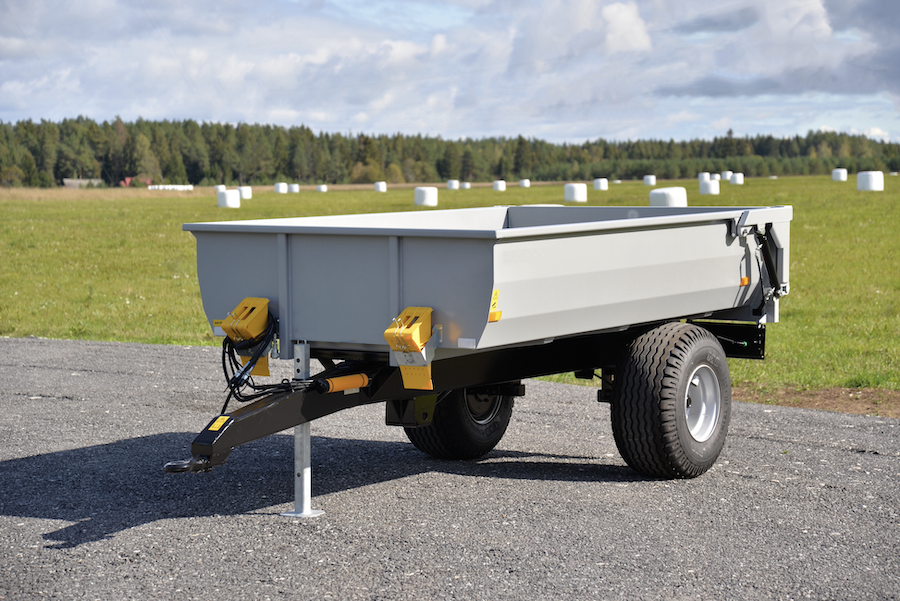

Robus dumper trailer for tough jobs. 1 axle gives this trailer a very good maneuverability. It is designed for working with excavators and small tractors on narrow streets, small construction sites etc.
For price inquire, please fill the form below:
| Model | RD3-03 |
| Length(mm)(With HSD01) | 4350 |
| Width(mm) | 1840 |
| Height(mm) | 1480 |
| Internal measurements of a platform(mm) | 3000x1720x550 |
| Capacitance(m3), ()-with volume backdoor | 2,84 |
| Capacitance with extensions (m3), ()-with volume backdoor | - |
| Base | 3290 |
| Empty weight(kg) | 740 |
| Max load capacity(kg) | 3500 |
| Max tipping/excanging capacity on hooklift | |
| Total weight(kg) | 4240 |
| Hitch load(kg) | 1500 |
| Axel sum | 1 |
| Permissible axel load(kg) | 2740 |
| Hub/axel | 70x70, 6 bolts |
| Suspension | - |
| Self steering axles | |
| Rear axle block | |
| Brake type | 300x90; 0 or 2 brakes |
| Brake blocks | Asbestos free |
| Speed limit(km/h) | 40 |
| Hydraulic circuit working pressure of a brake(bar) | 160 |
| Working pressure of hydraulic circuit(bar) | 180-200 |
| Oil volume for tipping(L) | 1,8 |
| Standard wheels | 11,5/80-15,3 |
| Tilt angle | 52 |
| Thickness of box’s bottom sheet(mm) | 3 |
| Thickness of box’s side sheet(mm) | |
| Optional wheels | 400/60-15,5 |
